Basic Info.
Product Description
| EEC L2e approval electric trike for passengers | ||
| Model | J1 | |
| Parameter | 3 wheel 2-3 seats | |
| Max distance | 100km (70 Ah Lithium battery/80Ah Lead acid battery) | |
| 140km (100Ah Lithium battery) | ||
| Speed(EEC proved) | 25km/h | |
| 35km/h | ||
| Configuration | Item | Standard | ||
Parameter | L*W*H (mm) | 2160*1150*1680 | ||
| Wheel base(mm) | 1555 | |||
| Max. Speed(km/h) | ≥35 | |||
| Max.distance (km) | ≥100 | |||
| Capacity(person) | 3 | |||
| Curb weight(kg) | 320 | |||
| Mini ground clearance (mm) | 160 | |||
| Mini turning radius(mm) | 3.1 | |||
| Steering mode | Middle | |||
| Power system | Motor | 60V 1500W | ||
| Lithium battery | 70ah Lithum Iron phosphate Battery | |||
| Charger | Intelligent car charger for lithium battery | |||
| Brake system | Type | Hydraulic system | ||
| Front | Disc | |||
| Rear | Drum | |||
| Suspension system | Front | Individual wheel suspension | ||
| Rear | Interigral rear axle | |||
| Wheel suspension | Type | Front 120/70-12 Rear 125/65-12 | ||
| Wheel hub | Wheel hub Aluminum alloy hub | |||
| Function device | Mutil media | MP5+rearview camera | ||
Option | Central Lock | Yes | ||
| Elelctric Door and Window | Yes | |||
| Skylight | Yes | |||
| One Button Start | Yes | |||
| Sun Shield | Yes | |||
| Carpet | Yes | |||
Colors For Choose
| White&Orange | Red&Silver | Blue&Silver | Grey&Silver | White&Silver |
More other colors OEM is also available.
| Optional Configuration | ||||
| BMS 100A.h lithium iron phosphate battery (Max.range is 140km, fast charging function,full charging time is 2-3 h) | +500 USD | |||
| High/low speed function | +45 USD | |||
| Fan | +30 USD | |||
| 3000w Motor | +185 USD | |||
| Tyres 135/70R | +45 USD | |||
| 70AH Lithium battery fast charger system (2-3hours full charging) | +200 USD | |||
| High speed axle (60km/h) | +100 USD | |||
| lead acid battery 60v 80ah | -600USD | |||
| 1200W motor | -100USD | |||
Front Windshield | 3C Certified, Tempered laminated glass |
Dashboard | LCD Display, Volt meter, Power meter, Kilometer, Reverse camera, Bluetooth, MP5, USB Connection |
Light System | Integral LED Head light,Turn lights, Brake lights, Reverse lights |
Plastic cover | ABS resign, Luxury interior with sunroof |
Seat | Adjustable seat,Genuine Leather + High Resilience PU |
Painting | Automobile-grade,Computer Painting Mixing, Robot-painting. |
1, CKD (Completely Knocked Down) assembly reduce and save customs duty& transportation cost
2, Car-sharing Personal & Commercial APP, to manage and monitor all vehicles
3, Fast charger within 2-3 hours under home charger, power consumption cost of each100Km is less than 0.5$.
Parts Advantage
| Motor | AC motor, auto-hold function, powerful, water proof, lower noise, no carbon brush, maintenance-free, long drive range. |
| Battery | Lithium Iron Phosphate battery with BMS system,Large-capacity, safety and long using life. |
| Electronic Control System | En-power electric control system , reliable and water-proof, steadily current control makes motor output much stronger and higher efficiency.Adopt the first-class AC motor control algorithm to achieve accurate control of motor speed. |
| Brake System | Front-disc Rear-drum,two-circuit hydraulic brake, for the higher safety and stability. |
| Suspension System | The front axle and suspension are independent suspensions, simple structure and excellent stability.The integrated rear axle, axle housing welded by seamless steel tube, lower noise, more durable and reliable. |
| Steering System | Use double output steering gear box to adjust the gap automatically. There is no dead angle when rotate, Operate will be more lighter. |
| Frame&Chassis | GB Standard Steel, the surface under pickling&Photostatting and corrosion-resistant treatment to ensure the excellent drive sense with stationary and solidity. |
Tyre and Rim | Aluminum Wheels Hub, Vacuum Radial Tire. |

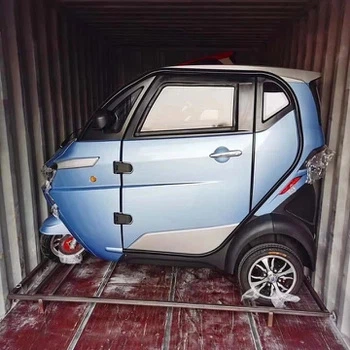

Packing & Delivery
| Container | 20 GP | 40HQ |
| Load Quantity | 4 Sets | 14 Sets (load with iron shelf) |
Anhui Haobo Fanren Automobile Sales Service Co., Ltd. was established in 2023 and is registered at Anhui International Financial Center, No. 18 Meishan Road, Shushan District, Hefei City, Anhui Province. The business scope includes: automobile sales; New energy vehicle sales; Tram sales; Import and export of goods; Import and export agency; Technology import and export, etc. The company has solid experience and foundation in the automotive sales industry, and will make every effort to provide customers with its own services. Since its establishment, our company has been mainly engaged in new car sales, used car sales, finance leasing and auto finance. Up to now, we have provided quality services for 80,000 car owners.
We mainly sell new energy vehicles, including SUV, Sedan, MPV, Mini car, Pure fuel used car, Charging pile, Automobile hub. The main cooperative brands are VW ID series, Skyworth, BYD, Geely, Hongqi and so on. And our annual output is more than 100,000 units.
At present, 40% of our company's auto trade is domestic sales and 60% is export trade, our business covers Asia, Eastern Europe, South America, Africa, etc. We are looking forward to cooperating with you!
