Industrial Belt Conveyor Bracket, Conveyor Frame

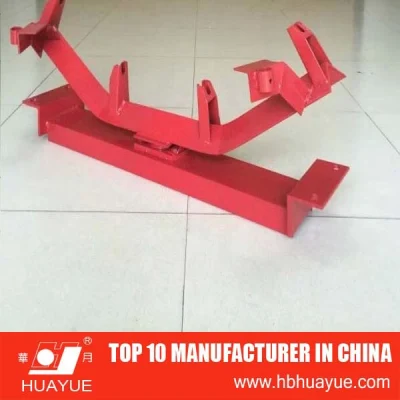

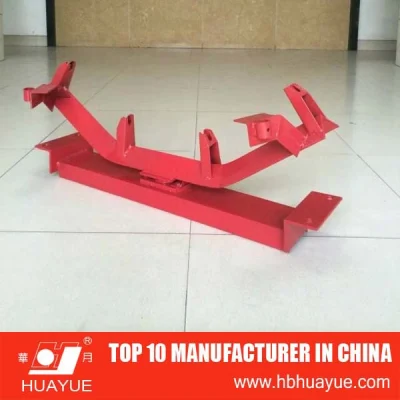

Industrial belt conveyor bracket


Belt conveyor is a kind of machine that transfers the material continuously. The belt works under the effect of frictional force. It is not only the component to transfer the material, but also the component to transfer the force. The belt conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high and transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials or packaged material. In many situations, it is a very important component of nonstandard machinery

Conveyor roller frames datasheet:
Standard: DIN15207, DIN22107, ISO1537, GB10595
Certificate: ISO, SGS
Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: Carbon steel, Rubber, nylon etc.
Belt width from 300mm to 2000mm
The international Market: Middle east, South America, Africa, Southeast Asia. Etc.

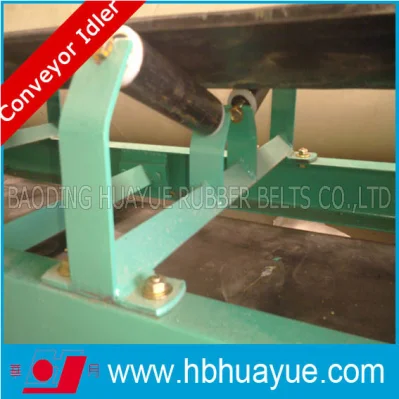

Industrial Conveyor roller support frame(B400-2200):
1, It is used to support the roller.
2, Hot dip galvanized, rust resistance.
3, Roller frame is an important component of a machine.
4, According to different requirements of customers
5. Production capacity:
6. As usual 5000 pieces/ week, but urgent order is acceptable

Advantage:
The life time: More than 30000 hours
Samples for testing are available.
The more relaxed payment terms
Standard: GB, ISO, CEMA, DIN, JIS

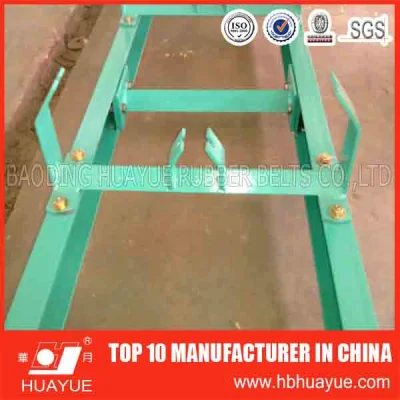

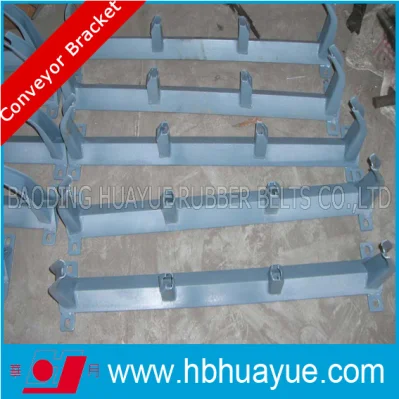

Detailed Belt conveyor frame/bracket feature:
1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
4. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
5. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
6. Lubrication: Grease is Lithiumsoap type grease with Rust Inhibitors.
7. Belt conveyor frame/bracket Welding: Mixed gas shielded arc welding end
8. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Besides we can manufacture the Conveyor frame bracket according to the buyers' requirements


Please feel free to let us know if you need any technical information.
For more details, please inquiry us!
