*HOWO Professional Manufacturers Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price *
Our factory is professional manufacturer in truck area,
guarantee all goods Brand-New and High-quality.
» I.Product Describution:
Manufacturer: Hubei Manten Automobile Co.,Ltd.
Road sweeper truck also called street sweeper truck ,municipal vehicle,sweeping vehicle,street cleaner ,sweeper cleaning truck ,street cleaning vehice.
Which is suitable for brushing,suction and transportation of dusts,leaves,mud,soil,sand,stone chips ,gravles and other small particles on the ground of city roads and areas.This truck shall be suitabe for dry type cleaning jods as well as dust suppression with water spray in the road sides and narrow lanes.
The road sweeper truck is composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .
4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.
Manufacturer: Hubei Manten Automobile Co.,Ltd.

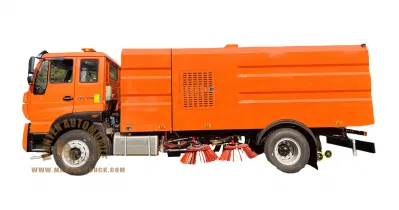

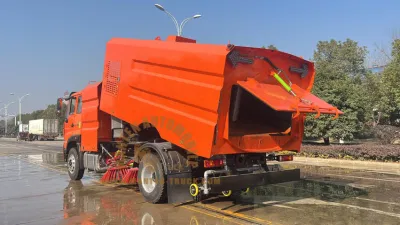

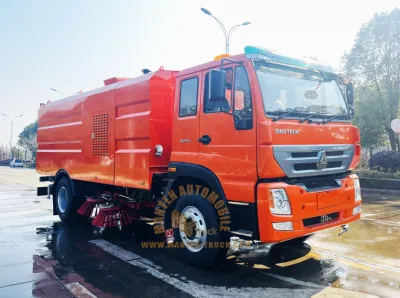

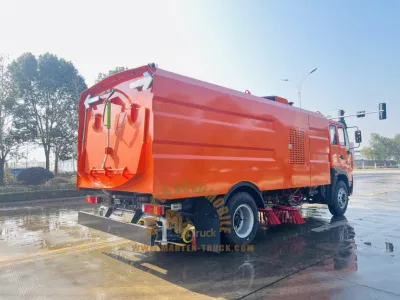

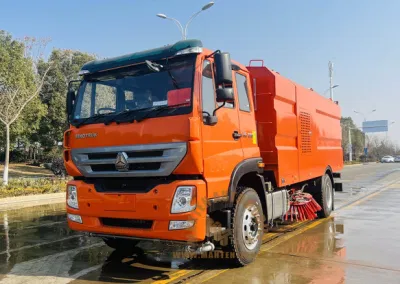

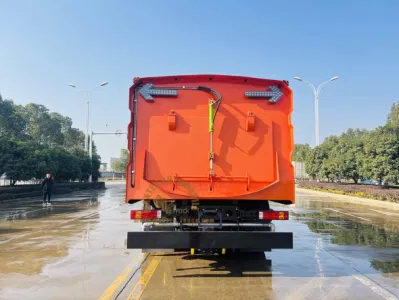

Pictures of the HOWO Road Sweeper Cleaning Truck:
Road sweeper truck as one of the sanitation equipments, it is new efficient cleaning equipment that used for road cleaning, garbage collection and transportation.
It is can be widely used for road cleaning in arterial highway, municipal, airport pavement, urban residential area and park etc.
Road sweeper truck also called road sweeper truck,tow road sweeper,manual road sweeper,vacuum road sweeper,road sweeper machine,vacuum road sweeper truck etc
Dust box and water box all dopted high quality stainless steel material ,angle of garbage dumping box more than 12 degree good for garbage dumping .
Road sweeper trucks adopted high quality hydraulic system ,stainless steel garbage box and water tanker ,famous brand auxiliary engine ,european brand motor
| HOWO 8000 Liters Road Sweeper Truck Street Vacuum Cleaner Truck | |||||
| Vehicle parameters | |||||
| Vehicle Model | MT5070TSLQ | Vehicle Brand | MANTEN | ||
| Overall dimensions | 6465X1980X2435mm | Curb weight | 5600kg | ||
| Dust tank volume | 8000L | Water tank volume | 2000L | ||
| Chassis parameters | |||||
| Chassis model | H5 | Chassis brand | HOWO | ||
| Overall dimensions | 6645x1880x2160mm | Wheel base | 4500mm | ||
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1015/1815mm | ||
| Approach/departure angle | 24/14° | Maximum speed | 105km/h | ||
| Cab | Configuration | single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump | |||
| Color | White,other color is optional | ||||
| Engine | Model | Yuchai | |||
| Emission | Euro 3/4/5 | ||||
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | ||||
| Rated power | 260hp | ||||
| Displacement | 5120ml | ||||
| Manufacturer | / | ||||
| Tire | Size | 825R20 | |||
| Number | 6+1 nos | ||||
| Front axle | 4tons | ||||
| Rear axle | 7tons | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | MSB five speed transmission,5 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Road sweeper structure parameters | |||||
| Dust tank volume | 8000L | Water tank volume | 2000L | ||
| Sweep width | 3000m | Cleaning speed | 3-20km/h | ||
| Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 0.98 | ||
| Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm | ||
| Unloading angle | 45° | Unloading height | 970mm | ||
| Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | ||||
| Selective configuration | surveillance system,rolling brush. | ||||
More Details Photos:
» III.Product Details:
» IV.Company Intorduce:
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc . Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
