Basic Info.
Model NO.
MT5070SWPT
Fuel
Diesel
Payload
8ton
Use
Burnishing
Cleaning Process
Cold Water Cleaning
Condition
New
Water Tanker
2000L /Stainless Steel
Dustbin Tanker
4000L/Stainless Steel
Sweeper Brush
4 PCS
Fan
Free Maintenance Fan
Motor
Italian or China Brand
Swith Control
S Chneider Brand
Front Flush
High Pressure, Optional
Rear Spay
Optional
Sucker
with
Transport Package
RO-RO, Bulk Vessel, Frame Container
Specification
ISUZU 5-8m3 Road sweeper truck
Trademark
MANTEN
Origin
Hubei, China
HS Code
8705909990
Production Capacity
3000 Units Per Year
Product Description
HUBEI MANTEN AUTOMOBILE CO.,LTD
Road sweeper truck also called street sweeper truck ,municipal vehicle,sweeping vehicle,street cleaner ,sweeper cleaning truck ,street cleaning vehice.
Which is suitable for brushing,suction and transportation of dusts,leaves,mud,soil,sand,stone chips ,gravles and other small particles on the ground of city roads and areas.This truck shall be suitabe for dry type cleaning jods as well as dust suppression with water spray in the road sides and narrow lanes.
The road sweeper truck is composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .
4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression .

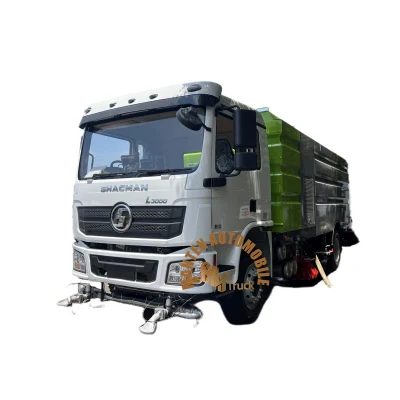

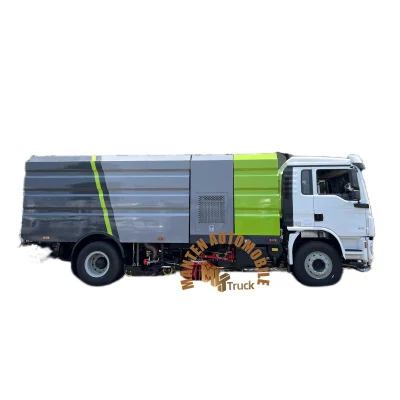

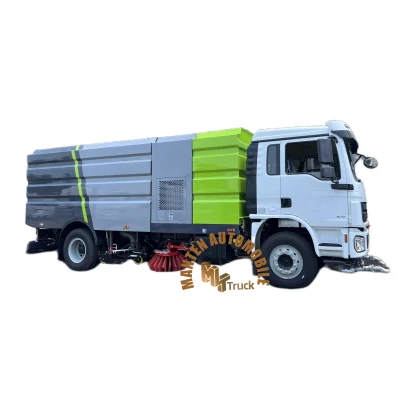

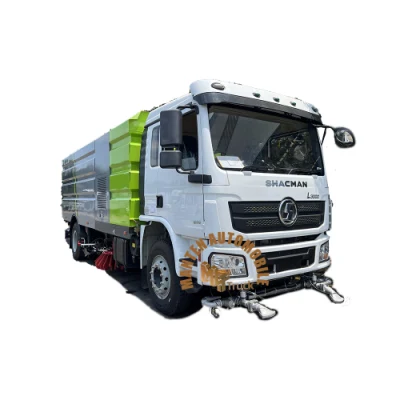

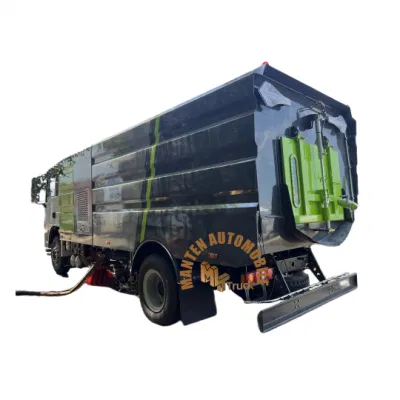

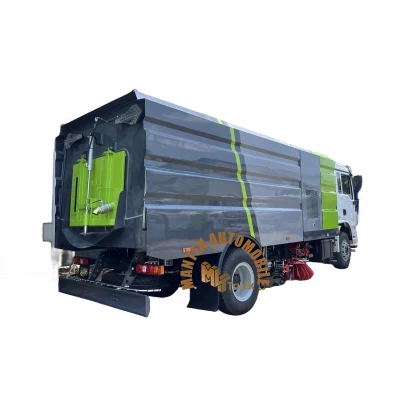

I. Details photos of Shacman Vacuum Road Sweeper Truck, 8cbm Street Cleaner Truck for Sale
II. Spec. of Shacman Vacuum Road Sweeper Truck, 8cbm Street Cleaner Truck for Sale
Shacman Vacuum Road Sweeper Truck, 8cbm Street Cleaner Truck for Sale | |||||
Vehicle parameters | |||||
Vehicle Model | MT5070TSLQ | Vehicle Brand | MANTEN | ||
Overall dimensions | 6465X1980X2435mm | Curb weight | 5600kg | ||
Dust tank volume | 8000L | Water tank volume | 2000L | ||
Chassis parameters | |||||
Chassis model | SX1160 | Chassis brand | Shacman | ||
Overall dimensions | 6645x1880x2160mm | Wheel base | 4500mm | ||
Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1015/1815mm | ||
Approach/departure angle | 24/14° | Maximum speed | 105km/h | ||
Chassis Manufacturer | Qing Ling Motors (Group) Co., Ltd. | ||||
Cab | Configuration | single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump | |||
Color | White,other color is optional | ||||
Engine | Model | CHAOCHAI,/YUNNEI, /YUCHAI /,ISUZU, /CUMMINS | |||
Emission | Euro 2/3/4/5 | ||||
Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | ||||
Rated power | 120hp,rated power speed 3400rpm | ||||
Displacement | 2999ml | ||||
Manufacturer | / | ||||
Tire | Size | 10.00-20/11.00R20,12.00R20 | |||
Number | 6+1 nos | ||||
Front axle | 2.5 tons | ||||
Rear axle | 4.8 tons | ||||
Drive form | 4X2 | ||||
Suspension | Multi leaf springs | ||||
Rated voltage | 24V,DC | ||||
Transmissions | Isuzu MSB five speed transmission,5 speed forward 1 reverse. | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Road sweeper structure parameters | |||||
Dust tank volume | 8000L | Water tank volume | 2000L | ||
Sweep width | 3000m | Cleaning speed | 3-20km/h | ||
Cleaning ability | 9000-60000 m2/h | Cleaning efficiency | 0.98 | ||
Maximum suction particle | 120mm | Min. clearance of suction nozzle | 200mm | ||
Unloading angle | 45° | Unloading height | 970mm | ||
Standard configuration | Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system. | ||||
Selective configuration | surveillance system,rolling brush. |
II.MAINPARTS OF ROAD SWEEPER TRUCK
III. MAIN TYPE OF STREET SWEEPER TRUCK
IV.PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
V. ABOUT US
HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,
sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc . Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
V. FAQ
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Payment terms
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
Welcome to contact us for the operation of the road sweeper trucks !
