Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price

Get the best selling price on a professional HOWO 4X2 8cbm road sweeper truck from our factory. High-quality street cleaning equipment at unbeatable rates.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MT5180CGT
Fuel
Diesel
Payload
10t
Use
Burnishing
Cleaning Process
Cold Water Cleaning
Condition
New
Water Tanker
2000L /Stainless Steel
Dustbin Tanker
6000L/Stainless Steel
Sweeper Brush
4 PCS
Fan
Free Maintenance Fan
Motor
Italian or China Brand
Swith Control
S Chneider Brand
Front Flush
High Pressure, Optional
Rear Spay
Optional
Sucker
with
Transport Package
RO-RO, Bulk Vessel, Frame Container
Specification
HOWO 5-8m3 Road sweeper truck
Trademark
MANTEN
Origin
Hubei, China
HS Code
8705909990
Production Capacity
3000 Units Per Year

Product Description


*HOWO Professional Manufacturers Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price *

--------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all goods Brand-New and High-quality.





» I.Product Describution:

Manufacturer: Hubei Manten Automobile Co.,Ltd.


Road sweeper truck also called street sweeper truck ,municipal vehicle,sweeping vehicle,street cleaner ,sweeper cleaning truck ,street cleaning vehice.

Which is suitable for brushing,suction and transportation of dusts,leaves,mud,soil,sand,stone chips ,gravles and other small particles on the ground of city roads and areas.This truck shall be suitabe for dry type cleaning jods as well as dust suppression with water spray in the road sides and narrow lanes.

The road sweeper truck is composted by chassis ,auxiliary engine ,air blower,mahnetic vavles ,dustbin ,water taner ,sweepring system ,suction system ,water sprinkling system ,hydraulic system ,electrical control system ,etc .

4 brooms sweeping system and suction system combine working high efficient.Water sprinklers equipped on brooms ,suction nozzles ,effective dust suppression

1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.



Manufacturer: Hubei Manten Automobile Co.,Ltd.

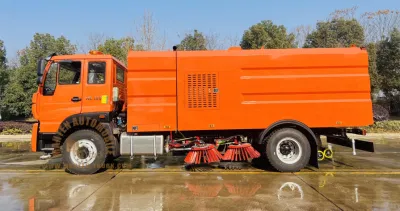

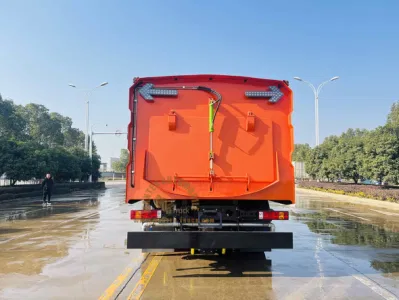

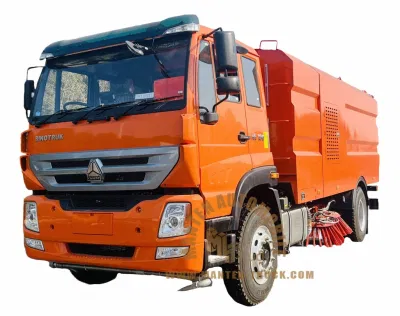

Pictures of the HOWO Road Sweeper Cleaning Truck:
Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling PriceProfessional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling PriceProfessional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling PriceProfessional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling PriceProfessional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling PriceProfessional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price

Road sweeper truck as one of the sanitation equipments, it is new efficient cleaning equipment that used for road cleaning, garbage collection and transportation
It is can be widely used for road cleaning in arterial highway, municipal, airport pavement, urban residential area and park etc.


Road sweeper truck also called road sweeper truck,tow road sweeper,manual road sweeper,vacuum road sweeper,road sweeper machine,vacuum road sweeper truck etc


Dust box and water box all dopted high quality stainless steel material ,angle of garbage dumping box more than 12 degree good for garbage dumping .



Road sweeper trucks adopted high quality hydraulic system ,stainless steel garbage box and water tanker ,famous brand auxiliary engine ,european brand motor


» II.Product Parameter of the HOWO Road Sweeper Cleaning Truck:

HOWO 8000 Liters  Road Sweeper Truck Street Vacuum Cleaner Truck
Vehicle parameters
Vehicle Model MT5070TSLQ Vehicle Brand MANTEN
Overall dimensions 6465X1980X2435mm Curb weight 5600kg
Dust tank volume 8000L Water tank volume 2000L
Chassis parameters
Chassis model H5 Chassis brand HOWO
Overall dimensions 6645x1880x2160mm Wheel base 4500mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Cab Configuration single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White,other color is optional
Engine Model Yuchai
Emission Euro 3/4/5
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 260hp
Displacement 5120ml
Manufacturer /
Tire Size 825R20
Number 6+1 nos
Front axle 4tons
Rear axle 7tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions  MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Road sweeper structure parameters
Dust tank volume 8000L Water tank volume 2000L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 0.98
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.

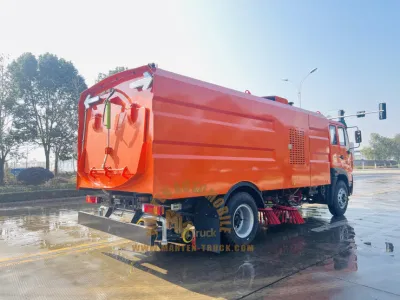

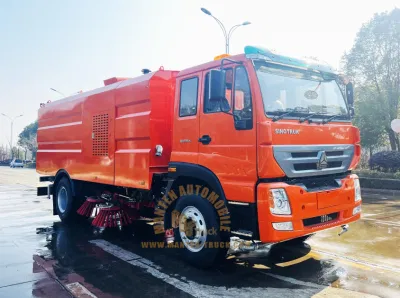

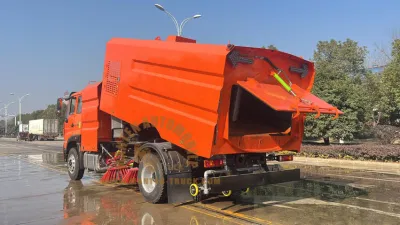

More Details Photos:
Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price
Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price
» III.Product Details:

Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price
Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price

» IV.Company Intorduce:

HUBEI MANTEN AUTOMOBILE CO.,LTD   is an authorized special truck manufacturer  which has many years in design ,product ,sales and service in special trucks like as  boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc . Main info as below:

(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.


Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price


» V. Professional packing and transprotation:



  • Professional Manufactures HOWO 4X2 8cbm Sweep Street Cleaning Broom Road Sweeper Truck Best Selling Price
  • Thick wax polished on products before shipping to protect.
  • Use container, RORO/bulk ship or others as your requirement.
  • We provide transportation insurance to guarantee the new and great condition of products for customers
  •
  • YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
