New Trend Superior Quality Building Material EPS Wall Panel for High Building

Discover the superior quality of our EPS wall panels for high buildings. As a factory, we prioritize top-notch materials for your construction needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
0818
Fire Rating
4
Certification
CCC, ROHS, ISO9001
Customized
Non-Customized
Type
EPS Cement Sandwich Panel
Model Number
Swp-29
Materials
Calcium Silicate Board
Core Material
Cement, EPS, Fly Ash.etc
Size
2440/2270*610*60/75/90/100/120/150mm
Fire Rated Partition
4 Hours
Sound Insulation
35-42dB
Warrant/Uselife
60-70 Years
Samples
Available
Auxiliary Material
Speicfic Mortar,Steel Bar, Anti-Crack Tape
MOQ
300m2
Usage
Exterior Wall/Interior Wall, Roofing, Flooring
Installation Speed
15m2/Per Day
Application
Carport, Hotel, House, Office Block,Warehouse etc.
Light Weight
1 Person Can Take up Two Pieces
Transport Package
Plastic Thin Film, Edge Protect and Good Pallet
Specification
60/75/90/100/120/150mm
Trademark
ZJT
Origin
Fujian, China
HS Code
6810999000
Production Capacity
200000 Square Meters/Month

Packaging & Delivery

Package Size
15.00cm * 20.00cm * 20.00cm
Package Gross Weight
2.000kg

Product Description


1. Product Description
 1) Introduction

New Trend Superior Quality Building Material EPS Wall Panel for High Building

ZJT lightweight energy-saving composite 'wall' panel has many advantages which light weight, compressivestrength, strong Impact resistance that other materials do not have in the construction of the transpontatlon,handling, cutting. Because wall panel using assemble design, the skill of the operationpersonnel is requiredextremely low and master coolie all can do. Compared with traditional clay brick construction, tneefficiency canbe promoted about 10 times, without plaster processing, greatly save the time for a project. Accorang a dau. ififgroupsconstruction sites data, brick masonry construction capacity of 12 individuals for eighthours eday,use ZJT wall panel in consrtion, three people could complete in 60 minutes, so eflic adanageresignificant.

2)wall Panel Size


New Trend Superior Quality Building Material EPS Wall Panel for High Building
3). Specification
  New Trend Superior Quality Building Material EPS Wall Panel for High Building

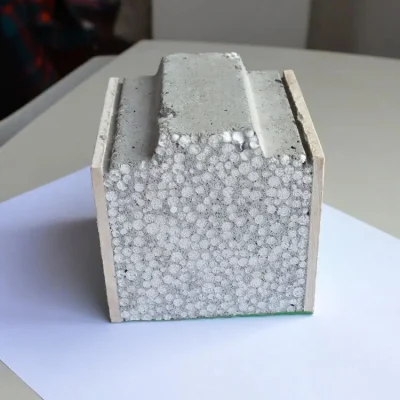

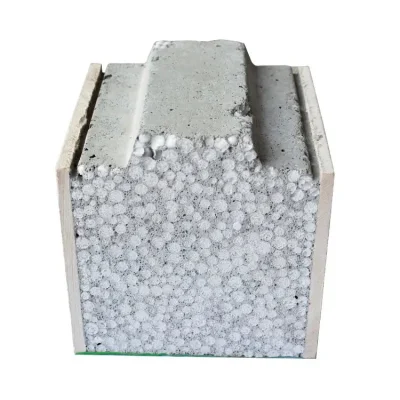

4). Composition

Surface :fiber cement board/calcium silicate board
Interior filling materials: EPS / cement / fly ash / sand / additive



New Trend Superior Quality Building Material EPS Wall Panel for High Building



5) Technical performance indicates

eItem  size 2270*610/2240*610
thickness 60mm 75mm 90mm 100mm 120mm 150mm
Surface density  kg/m2 ≤70 ≤70 ≤90 ≤110 ≤110 ≤110
Moisture rate % ≤10 ≤10 ≤10 ≤8 ≤8 ≤8
Sound insulation dB ≥35 ≥35 ≥40 ≥42 ≥45 ≥50
Fireproof H ≥1.5 ≥1.5 ≥2.5 ≥3.0 ≥3.0 ≥4.5

The combustion properties of (AIorA2)

A1orA2

2. Advantages and Futures

    The products has the advantage of Solid, Lightweight, Thin, Better Strenth, Impact Resistance, Hanging Strenth, Heat Insulation,Sound Insulation, Easy Cutting, Pet and Rot Resistance,  Fireproof, Waterproof, Fast construction,Easy installation Increasing usable Space.

    It can be arbitrarily slotted, without batch file, dry operation, environmental protection, which achieve energy
conservation and energy efficient. At the same time, it reduces the total area to be ocupied by the wall and to raise
residential practical area, alleviates the structure load, improves the building aseismatic capacity and safety performance, and reduce total cost.This production technology and application are the reform of the world materail, and a new breakthrough
in our country

New Trend Superior Quality Building Material EPS Wall Panel for High Building

3. Construction Process

New Trend Superior Quality Building Material EPS Wall Panel for High Building

Installation Deatails


 Step1: Alignment: Settling the base line of the installation position according the thickness of the wall panel.
            Then putting the panels to the corrected position.

 Step2: Sawing wall panel: Using a professional installation size, in accordance with the proportion add water to
            turn into the pulpous state, using water brush wet for the wallboard of Waffle Blade, after applying in the
            groove
of wallboard, joint of floor and beam column.

 Step3: Plastering the cement mortar: Before fixing the wall panel, clearing the dust firstly and then plastering the
            cement
mortar in concave and the joints.

 Step4: Calibrating: After finishing to fix the wall panel, using the crowbar to calibrate the right position.

 Step5: Adjustment : After calibrating sticking two steel bars to the wall panel fix except the wood wedges.

 Step6: Filling joints: After the installation and adjustment, clearing the spilled mortar and using the steel to fill the
            joints the
depth 4-5mm.

 Step7: After installation for a week taking out of the wood wedges and plastering the mortar on the joints.



4. Application

 1) Floor Application

   ZJT lightweight energy-saving composite wall panel especially suitable for factory, workshop, warehouse, store,
temporary buildings, building floors, etc. When used as floor and roof, it can be used with steel structure and the stability is very outstanding.


New Trend Superior Quality Building Material EPS Wall Panel for High Building


2) Roof Application

New Trend Superior Quality Building Material EPS Wall Panel for High Building

3) Application in Exterior Wall
    Our products can be widely applied to various occations, such as low-rise urban buildings, duplex apartments, villas, hotels, office buildings, commercial spaces and urban house.

New Trend Superior Quality Building Material EPS Wall Panel for High Building


4) Application in Interior Wall

New Trend Superior Quality Building Material EPS Wall Panel for High Building


*All kinds of new and old building construction of indoor and outdoor decoratio

*Indoor and outdoor decoration of office buildings, hospitals, shops, restaurants, bars and other public buildings;

*Interior and exterior wall decoration of family homes, luxury apartments, villas etc; *Particularly suitable for high-rise building exterior wall insulation decoration.



5. About us

    Xiamen ZhongJingtai building materials Co., Ltd, a comprehensive enterprise, specializes in developing and producing the new energy-saving wall materials. Located in the beautiful city, Xiamen, ZJT has modern working environment and production base. The factory is located in Quanzhou and its annual production capacity is more than two hundred million square meters.

    The energy-saving sandwich wall panels are our main product, which has many advantages compared with traditional wall panels, including lightweight, solid core, thin body, high strength, shock resistance, heat insulation, sound insulation, fireproofing, waterproofing and easy installation. This not only conforms to modern construction requirement but also meets the country environmental-friendly building policy.

    We adhere to the "quality first, win-win cooperation" business philosophy. We can design the sandwich wall panels according to your special request. Welcome to visit our factory and become our clients some day!



1) Our Factory

New Trend Superior Quality Building Material EPS Wall Panel for High Building

2) Certificate
New Trend Superior Quality Building Material EPS Wall Panel for High Building
