Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

Discover the Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type. As a factory, we pride ourselves on quality and reliability.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
Mini Car
Displacement
EV
Gearbox
Automatic
Fuel
Electric
Braking System
Electromagnetic
Color
White
Road Conditions
Road
Energy Type
Pure Electric
Cltc Electric Range (Km)
405
Fast Charge Time (H)
0.5
Maximum Power (Kw)
40
Maximum Torque(N·m)
50
Motor(PS)
40
Dimension(mm)
2160*1150*1680
Body Structure
Three-Door, 3-Seat Back
Maximum Speed (Km/H)
45
Official 0-50km/H Acceleration (S)
4.9
Curb Weight(Kg)
1340
Maximum Load Weight (Kg)
1715
Battery Energy (Kwh)
43.2
Driving Motors
Single Motor Front Drive
Center Control Screen Size
10.1inches
Transport Package
According Customer Demand
Specification
2160*1150*1680
Trademark
FAMOUS
Origin
China
HS Code
8703800010
Production Capacity
50000 Pieces/Year

Product Description

Positioning: Short distance driving for shopping, daily commute, as family's second or third vehicle. Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

EEC L2e approval electric trike for passengers
Model J1
Parameter 3 wheel
2-3 seats
Max distance 100km   (70 Ah Lithium battery/80Ah Lead acid battery)
                                     140km   (100Ah Lithium battery)
Speed(EEC proved) 25km/h
35km/h

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

Configuration Item Standard



Parameter



L*W*H (mm) 2160*1150*1680
Wheel base(mm) 1555
Max. Speed(km/h) ≥35
Max.distance (km) ≥100
Capacity(person) 3
Curb weight(kg) 320
Mini ground clearance (mm) 160
Mini  turning radius(mm) 3.1
Steering mode  Middle
Power system Motor 60V 1500W
Lithium battery 70ah Lithum Iron phosphate Battery
Charger Intelligent car charger for lithium battery
Brake system Type Hydraulic system
Front Disc
Rear Drum
Suspension system Front Individual wheel suspension
Rear Interigral rear axle
Wheel suspension Type Front 120/70-12 Rear 125/65-12
Wheel hub Wheel hub Aluminum alloy hub
Function device Mutil media MP5+rearview camera



Option




Central Lock Yes
Elelctric Door and Window Yes
Skylight Yes
One Button Start                                               Yes
Sun Shield Yes
Carpet  Yes

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

Colors For Choose

White&Orange  Red&Silver  Blue&Silver  Grey&Silver   White&Silver

More other colors OEM is also available. Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type
Optional Configuration
BMS 100A.h lithium iron phosphate battery
(Max.range is 140km, fast charging function,full charging time is 2-3 h)
+500 USD
High/low speed function  +45 USD
Fan +30 USD
3000w Motor  +185 USD
Tyres 135/70R +45 USD
70AH Lithium battery fast charger system
(2-3hours full charging)
+200 USD
High speed axle
(60km/h)
+100 USD
lead acid battery 60v 80ah -600USD
1200W motor -100USD

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type
Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type


Front Windshield

3C Certified, Tempered laminated glass

Dashboard

LCD Display, Volt meter, Power meter, Kilometer, Reverse camera, Bluetooth, MP5, USB Connection

Light System

Integral LED Head light,Turn lights, Brake lights, Reverse lights

Plastic cover

ABS resign, Luxury interior with sunroof

Seat

Adjustable seat,Genuine Leather + High Resilience PU

Painting

Automobile-grade,Computer Painting Mixing, Robot-painting.


Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

 1, CKD                   (Completely Knocked Down) assembly reduce and save customs duty& transportation cost

 2, Car-sharing       Personal & Commercial APP, to manage and monitor all vehicles

 3, Fast  charger    within 2-3 hours under home charger, power consumption cost of each100Km is less than 0.5$.


Parts Advantage

 Motor

AC motor, auto-hold function, powerful, water proof, lower noise, no carbon brush, maintenance-free, long drive range.

Battery

Lithium Iron Phosphate battery with BMS system,Large-capacity, safety and long using life.
2,000 times charging cycles(8-10 years) under working environment from -20 to 80 °C.  Equipped with a fast charge ,to achieve full charge within 2-3 hours.

Electronic Control System

En-power electric control system , reliable and water-proof, steadily current control makes motor output much stronger and higher efficiency.Adopt the first-class AC motor control algorithm to achieve  accurate control of motor speed.

 Brake System

Front-disc Rear-drum,two-circuit hydraulic brake, for the higher safety and stability.

Suspension  System

The   front axle and  suspension are  independent  suspensions, simple  structure and excellent stability.The integrated rear axle, axle housing welded by seamless steel tube, lower noise, more durable  and reliable.

Steering System

Use double output steering gear box to adjust the gap automatically.

There is no dead angle when rotate, Operate will be more lighter.

Frame&Chassis

GB Standard Steel, the surface under pickling&Photostatting and corrosion-resistant treatment to ensure the excellent drive sense with stationary and solidity.


Tyre and Rim

Aluminum Wheels Hub, Vacuum Radial Tire.

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

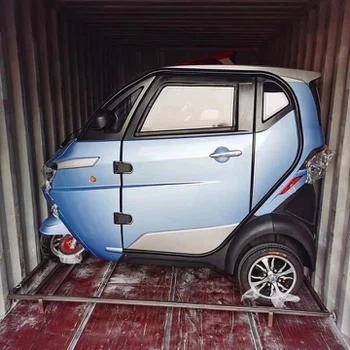

Packing & Delivery


Container 20 GP 40HQ
Load Quantity 4 Sets  14 Sets (load with iron shelf)

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type







Certifications


Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

Packaging & Shipping

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

Company Profile

Anhui Haobo Fanren Automobile Sales Service Co., Ltd. was established in 2023 and is registered at Anhui International Financial Center, No. 18 Meishan Road, Shushan District, Hefei City, Anhui Province. The business scope includes: automobile sales; New energy vehicle sales; Tram sales; Import and export of goods; Import and export agency; Technology import and export, etc. The company has solid experience and foundation in the automotive sales industry, and will make every effort to provide customers with its own services. Since its establishment, our company has been mainly engaged in new car sales, used car sales, finance leasing and auto finance. Up to now, we have provided quality services for 80,000 car owners.

We mainly sell new energy vehicles, including SUV, Sedan, MPV, Mini car, Pure fuel used car, Charging pile, Automobile hub. The main cooperative brands are VW ID series, Skyworth, BYD, Geely, Hongqi and so on. And our annual output is more than 100,000 units.

At present, 40% of our company's auto trade is domestic sales and 60% is export trade, our business covers Asia, Eastern Europe, South America, Africa, etc. We are looking forward to cooperating with you!

Our Advantages

Mini Type Three Wheel Pure Electric Car with Hydraulic Disc Brake Type

FAQ

Q1: How do we place an order?
A1: Tell us item Number and quality you need, Get Latest Quote; Confirm order details, Reach Trading Intention, We will send the order PI;Tell us shipping address with Zip code and contact telephone No, Arrange the payment; After confirm the payment, we will ship out the order in 15-30 business days.

Q2: What method of payment do you accept?
A2: We accept Western Union, T/T, paypal, moneygram , Secure Payment.

Q3: How would the goods be shipped?
A3: We can ship it by sea or by land.

Q4 : How you control the quality of your products ?
A4 : Our products testing process is strictly monitored to ensure our clients will get the best quality goods.From production to packaging.our QC will process three times inspection.Good culture is our culture.

Q5: Do you have a good attitude towards pre-sales and after-sales service?
A5: Yes, before purchasing, wewill solve all your questions and inquiries, service first, and try our best to satisfy your products including attributes,configuration and operation guidance. May we become friends for a lifetime.
