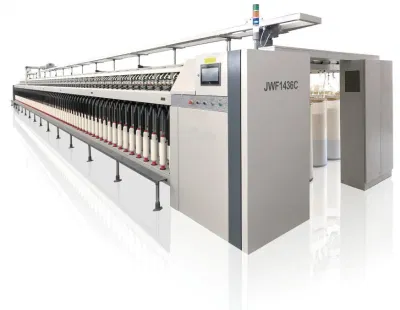

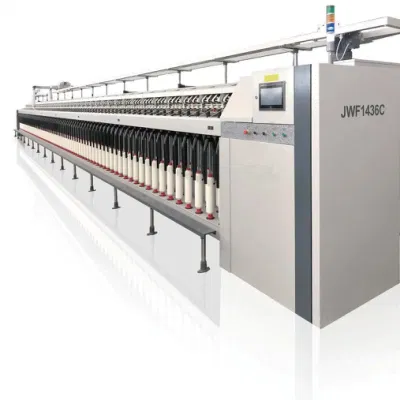

Jwf1436c Roving Frame Textile Machine

Get the best quality Jwf1436c Roving Frame Textile Machine at our factory. We specialize in manufacturing top-notch textile machinery for your business needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Details Showing
  • Product Parameters
  • Company Profile
Overview

Basic Info.

Model NO.
JWF1436C
Warranty
12 Months
Customized
Non-Customized
Condition
New
After-sales Service
Guide User Personnel to Learn Installation
Spindle Gauge(mm)
216
No. of Spindle
96, 108, 120, 132, 144, 156, 168, 180, 192
Full Package(mm)
152*400
Drafting Range(Times)
4.2-12
Twist Range(T/M)
18.5-80
Adaptable Counts
200-1000(Nm5-1)
Spinning Staple(mm)
22-38, 38-51, 51-65
Drafting System
3roller, 4roller
Max. Mechanical Speed(Rpm)
1500
Spinning Speed(Rpm)
1300
Total Rate Power(Kw)
33
Total Air Exhaust(M3/H)
2000
Orientation
R or L Hand
Cleaner
Upper and Bottom Positive Intermittent Revolving
Dia. of Can(mm)
400 or 500 or 600
Transport Package
Crates
Trademark
JINGWEI
Origin
China
HS Code
84451321

Product Description

JINGWEI Brand Modle JWF1436C Roving Frame in textile ring spinning line
24h Online Customer Service


Product Description

Model JWF1436C,JWF1446C Roving Frame is the latest generation cone drumlessversionwhich is developed on the base of FA series with the microcomputer control.The regulating speed by inverter.The machine has the high level of mechanical and electrical integration.High-precision control system and in the form of four motor divisions drive, so that the whole of spinning process to achieve a digital control,with high yarn quality and high reliability.

Details Showing
Jwf1436c Roving Frame Textile Machine
Jwf1436c Roving Frame Textile Machine
Jwf1436c Roving Frame Textile Machine

1- HIGH SPEED
Using high-speed closed type flyer, by gear transmission.
2- HIGH EFFICIENCY AND SIMPLE OPERATION
All process data is stored and can be recalled up at any time.Except the drafting changegears,all of other change gears are eliminated.parameters are input directly on the touch screen.The technological parametrs are input directly on the touch screen.
3- PURSUITTHE HIGH QUALITY ROVING
The current inspecting and feedback controlling system are composed of CPU and multi rotary encoderswith high accuracy.
The digitallsation control is accomplished by the inverter control system with high accuracy. The rovingtension is strictly controlled during running by math. patterns to ensure the uniform roving tension.



Jwf1436c Roving Frame Textile Machine
DRAFTING SYSTEM

3-roller and 4-roller double short aprons drafting system are available at option.

STANDARD CONFIGURATION:
Chinese YJ-40 Spring-loaded pendulum arme.OPTIONAL CONFIGURATION:
The pendulum arm of Texparts PK1550 and Roller bearing;Suessen Leaf spring pressure pendulum arme and Roller bearing.
CLEANING SYSTEM

The perfect self-cleaning system is presented in this machine. Upper and bottompositive intermittent revolving cloth are adopted and the traveling cleaner andsuction channel are equipped.The waste combed from the bottom clearer cloth together with the flyingsaccumulated on spindle rail cover and roller beam are all blown into the suctionoutlets which are located on the back side of roller beam .Meanwhile the wastecombed from the upper clearer cloth is suck up by the traveling suction nozzle,foreffective preventing the flyings to adhere into the roving and decreasing the rovingfaults.
Jwf1436c Roving Frame Textile Machine
Jwf1436c Roving Frame Textile Machine
CREELWITH GANTRY

The guide roller is made of the aluminium alloy with the positive feeding.The closed type ball bearings are equipped with the connecting places ofthe guide roller of each staff to eliminate the false draft.

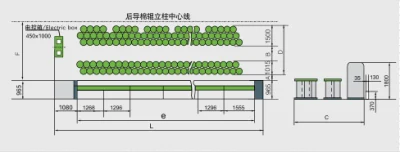

CAN FOR φ16# INCH
Jwf1436c Roving Frame Textile Machine

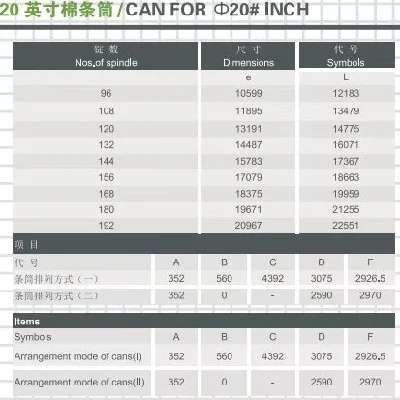

CAN FOR φ20# INCH

Jwf1436c Roving Frame Textile Machine
Product Parameters
1
Quantity

jwf1436c sets
2 No.of Spindle 24
24Sspindles/frame
3
Fiber Length
22-38mm;65mm
cotton fiber 22-38 mm; chemical fiber below 65mm
4 (Tex)
Adoptable Count (Tex)
200-1000
5
Mechanical Speed
1200/
1200 rpm
6
Spindle Gauge
216mm
7
Full Package
152 x 400 mm
8
Flyer

fully enclosed type
9
Creel
6φ500 x 1100
row creel suitable for can size Φ500 x 1100 mm
10
Draft Range
4.2 - 12
4.2 - 12 times
11
Twist
18.5 - 80/
18.5 - 80 T/m
12
DRAFTING
TEXParts PK 1550
EU SAUER TEXPARTS PK 1550 (4 X 4) ROLLERS PENDULUM ARMS, ROLLERS, CRADLE OH514-6962746 DISTANCE CLIPS, PRESS FIT RUBBER COTS (SHORE HARDNESS 82 DEGREE)
13
Bottom Roller
28 x 28 x 28 x 28 mm()
28 x 28 x 28 (knurled) x 28 mm
14
Infrared Photocell
5,
5 pairs, China
15
Main bearing of head stock
Germany
16
Motor Power
380V,400V,415V±10% 50Hz,
17
Main Motor with inverter
11kw for flyer
18
Winding Motor:
11kw(120S),15kw(156S)
11kw(120S) for bobbin,15kw(156S) for bobbin
19
Roller Motor
4KW(120S),5.5KW(156S)
4KW(120S)for roller,5.5KW(156S)for roller
20
Lifting Motor:
1.5kw
1.5kw for bobbin rail lift
21
Motor for blowing
4KW
22
Motor for overhead cleaner
1.5kw
23 Dimension (L x W)   4407×4100(24,Φ500 x 1100 mm)
4407×4100mm(for24 spindles, Φ500 x 1100 mm)
24 Overhead Cleaner one for one machine
25 Total rated power 33KW(120S),38.5KW(156S)
33kw(24S),(including the travelling cleaner)
