Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter

Fiberglass Cutting Machine: Our factory produces high-quality guillotine chopper and gantry cutter for efficient fiberglass cutting. Explore our products now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MT600D
Delivery
7 Days
Color
Orange, Black or as Request
Min. Size
0.2mm
Max. Size
120mm
Size Adjust
PLC
Pressing Roller
Pneumatic Control
Cutting Width
600-1000
Transport Package
Standard Exporting Package
Specification
140, 160, 220
Trademark
Morinte
Origin
Shandong, China
HS Code
84440050
Production Capacity
150sets/Month

Product Description

Glass roving cutting machine/Aramid fiber cutting machine/Fiberglass/Carbon fiber tow chopping machine
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter

This fiberglass cutting machine is mainly used for processing polyester fiber, carbon fiber, metal fiber, dacron fiber, terylene fiber, polypropylene fiber, fiber glass,aramid fiber and Basalt fiber to make construction material, special paper making, paint making and other process.

Materail feed through pressing roller which controled by pneumatic control, then cutted through the moving and fixed bladed into requested size. The cutting size adjusted through the wheel on manual type, or setting on panel screen on PLC type.

Cutted materail widly used in construction material, special paper making, painting making, battery, spinning and other processing.


Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Machine details:

Model
MTG600A
MTG600B
MTG1000A
MTG1000B
Power
4kw
6.6kw
7.5kw
10kw
Voltage
380v/50hz
380v/50hz
380v/50hz
380v/50hz
Cutting length
1-80mm
1-200mm
1-80mm
1-200mm
Knife length
730mm
730mm
1250mm
1250mm
Cutting width
600mm
600mm
1000mm
1000mm
Cutting speed
70times/min
30-80times/min (Adjustable)
70times/min
30-80times/min (Adjustable)
Air pressure
0.8MPA
0.8MPA
0.8MPA
0.8MPA
Weight
1400kg
1400kg
1800kg
1800kg
Size
2*1.7*1.4m
2*1.7*1.4m
2*2.2*1.5m
2*2.2*1.5m

Usage and features
  1. This series cutting machine is mainly used for accurate size cutting
  2. The cutting length can be adjusted from 0.2-120mm
  3. The cutting machine is easy to maintain and operate, energy-efficient.

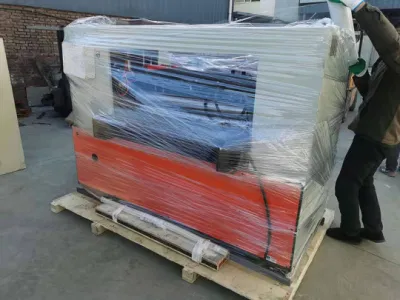

Shipment and Loading:

With standerd  exporting wooden package, non-fumigation
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter

Why Choose Our Company?

1, More Experience Professional Manufacturer.
2, Rich product lines can meet more request.
3, Quickly delivery and Competitive price with high quality.
4 , We can design as request and supply the whole production line for you.

Any problems, we will response within 24hours, and solve as soon as possible.Within the one year guarantee period, the damage not caused by improper operation, we will provide components freely.

Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
FAQ:

1. Do you have English manual book?

Re: Yes, we have.Will send it to you with machine delivery.

2. Can we change the voltage?

Re: Yes, please kindly inform me the voltage you need,220v or 380v

3. How long will you send the machine after payment?

Re: Normally, 5-7 days

4. How can I pay?

Re: By T/T(wire transfer),Western Union, Money Gram, LC

Fiberglass Cutting Machine/Guillotine Chopper/Gantry Cutter
