Product Description
Explosive Models Construction Waste Reduction Panelling Boards for Entertaining Equipment

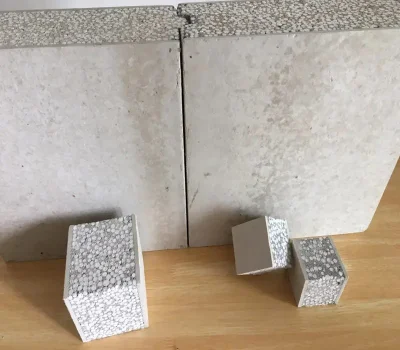

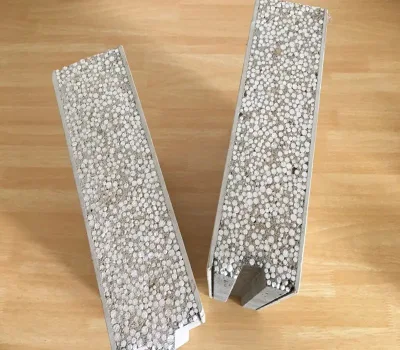

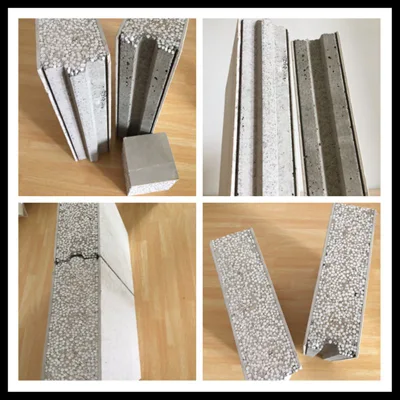

1). Composition
Surface :fiber cement board/calcium silicate board
Interior filling materials: EPS / cement / fly ash / sand / additive
![Explosive Models Construction Waste Reduction Panelling Boards for Entertaining Equipment](http://img6.grofrom.com/www.zixibrushgroup.com/226f3j00USaWtlnFfyum/Explosive-Models-Construction-Waste-Reduction-Panelling-Boards-for-Entertaining-Equipment.webp)
![Explosive Models Construction Waste Reduction Panelling Boards for Entertaining Equipment](http://img6.grofrom.com/www.zixibrushgroup.com/226f3j00fZEiQeOqEFuJ/Explosive-Models-Construction-Waste-Reduction-Panelling-Boards-for-Entertaining-Equipment.webp)
![Explosive Models Construction Waste Reduction Panelling Boards for Entertaining Equipment](http://img6.grofrom.com/www.zixibrushgroup.com/226f3j00fsaWEONgAyzd/Explosive-Models-Construction-Waste-Reduction-Panelling-Boards-for-Entertaining-Equipment.webp)
2). Specification
Length | Width | Thickness | Usage |
2270mm 2440mm | 610mm | 60mm | roof |
75mm | internal/partition wall | ||
90mm | |||
100mm | |||
120mm | external wall/floor | ||
150mm | external wall |
3). Technical performance indicates
eItem | size | 2270*610/2240*610 | |||||
thickness | 60mm | 75mm | 90mm | 100mm | 120mm | 150mm | |
Surface density | kg/m2 | ≤70 | ≤70 | ≤90 | ≤110 | ≤110 | ≤110 |
Moisture rate | % | ≤10 | ≤10 | ≤10 | ≤8 | ≤8 | ≤8 |
Sound insulation | dB | ≥35 | ≥35 | ≥40 | ≥42 | ≥45 | ≥50 |
Fireproof | H | ≥1.5 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.0 | ≥4.5 |
The combustion properties of (AIorA2) | A1orA2 |
2. Advantages and Futures
1. Energy saving, Green, Environmental friendly
The raw materials do not include harmful substances.
Energy-saving effects of the building is greatly improved. It is also highly recommended by the government.
2. Durable
70+ years building life span.
3. Strong Hanging Force
Hard surface and no damage after impacting. The hanging strength of Single spot is 100kg can be nailled and affix tile.
4. Fireproof
Panels have a fire rating of 4 hours and A class of National standard.
5. Waterproof, Dampproof
No bead on wall panel surface in wet climate.
6. Sound insulation
The sound insulation capacity in the air is 35db-45db (according to National standard: GBJ121-88).
7. Quakeproof
More suitable for seismic & cyclone prone zones.
8. Unique tongue and groove
Specially designed tongue and groove arrangement ensures a perfect joint and makes construction faster.
9. Rapid installation
Being light in weight, handling & installation become very easy. One worker can do 20 sqm every day.
10. Dry working
It is very convenient, less building rubbish left after installation and clean up easily.
11. Excellent surface finish
The wallboard surface is level. You can plaster directly for inner decoration.It also can take all decorative treatment.
3. Construction Process
Step1: Alignment: Settling the base line of the installation position according the thickness of the wall panel.
Then putting the panels to the corrected position.
Step2: Sawing wall panel: Using a professional installation size, in accordance with the proportion add water to
turn into the pulpous state, using water brush wet for the wallboard of Waffle Blade, after applying in the
groove of wallboard, joint of floor and beam column.
Step3: Plastering the cement mortar: Before fixing the wall panel, clearing the dust firstly and then plastering the
cement mortar in concave and the joints.
Step4: Calibrating: After finishing to fix the wall panel, using the crowbar to calibrate the right position.
Step5: Adjustment : After calibrating sticking two steel bars to the wall panel fix except the wood wedges.
Step6: Filling joints: After the installation and adjustment, clearing the spilled mortar and using the steel to fill the
joints the depth 4-5mm.
Step7: After installation for a week taking out of the wood wedges and plastering the mortar on the joints.
4. Application
ZJT Sandwich Panel Applications | |
1).Floor Application | ZJT light weight compound sandwich panel can be innovatively used as floor board.This system has the outstanding advantages such as hight load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc., which is much suitable for the fields including the floor plate of additional top floor, factory, workshop, warehouse, etc. |
2).Villa&Exterior Wall Application | Light weight compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, and such ecology effect just goes with the tide of modern residential building. |
3).Interior Partition Application | Light weight compound sandwich board have been widely applying to the special positions like partition panel of high-rise and mega-high-rise buildings. |
4).Roof Application | Light weight compound sandwich panel roof system brings brand-new added value and application idea to the traditional roof construction.Its easy construction time brings out its hight integrated performance. |
5).Pipe/Fire Well/Equipment Partition Application | ZJT light weight energy-saving sandwich wall panel has features of lightweight, easy cutting, dry used,and easy installation.It is the most suitable wall panel for pipe well, air sharft, fire well, equipment partition and room partition wall. |
